Obtaining precise quantitative dimensional data requires the combination of the air gage readout instrument and gaging member to be mastered with one or two setting masters.”. Douglas Gage master rings, plugs and discs are fabricated from heat-treated and stabilized chrome alloy steel blanks conforming to Douglas Gage Design standard A.N.S.I. B47.1. After heat treat and stabilization cycles, these masters are custom finished by grinding and lapping to the precise dimensions specified. Final calibration is done in a special, temperature-controlled, gauge calibration lab using electronic comparator instruments and laboratory grade reference standards.

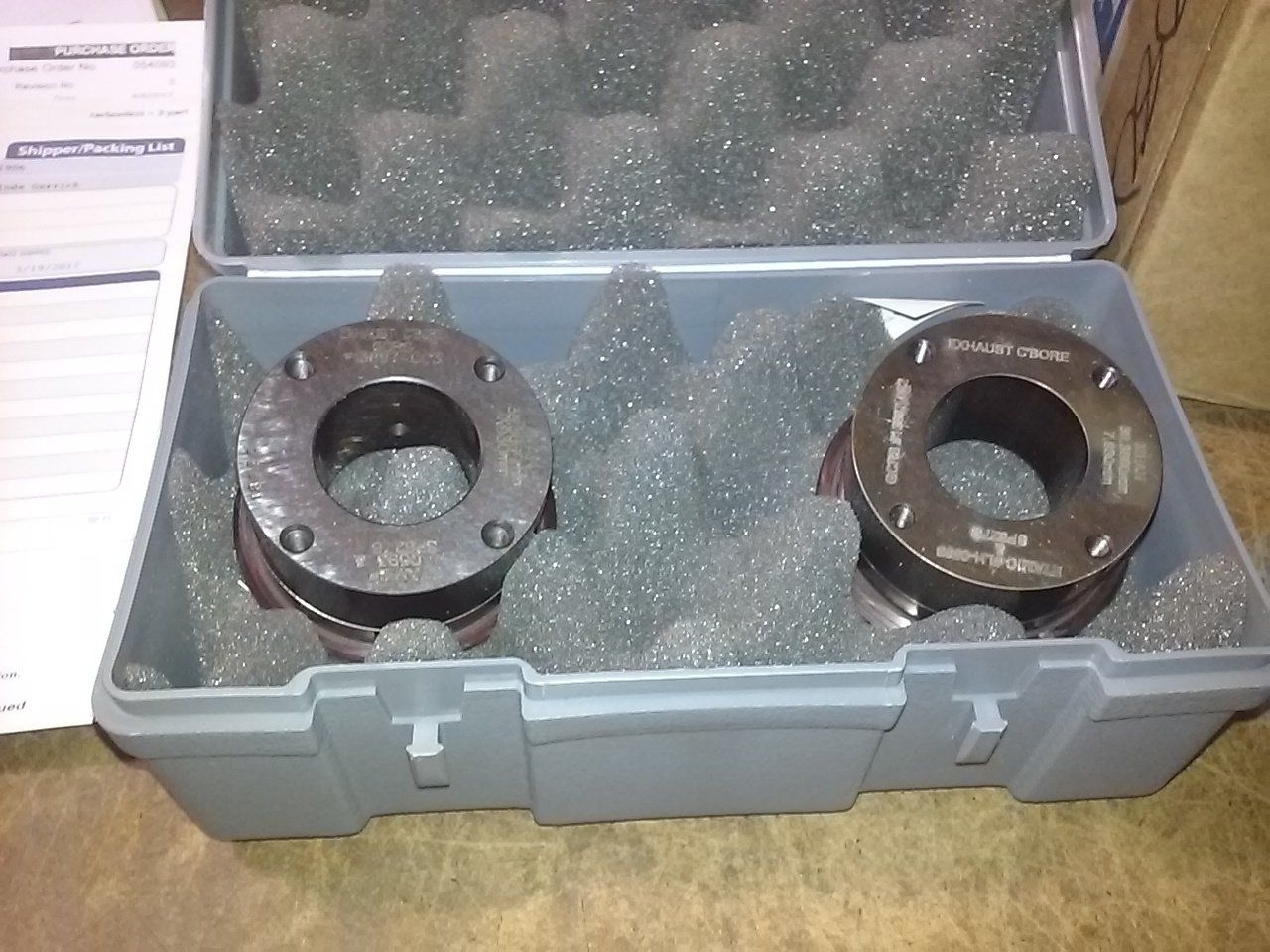

Master rings are used to set air probes and other types of
bore gages to a known size.

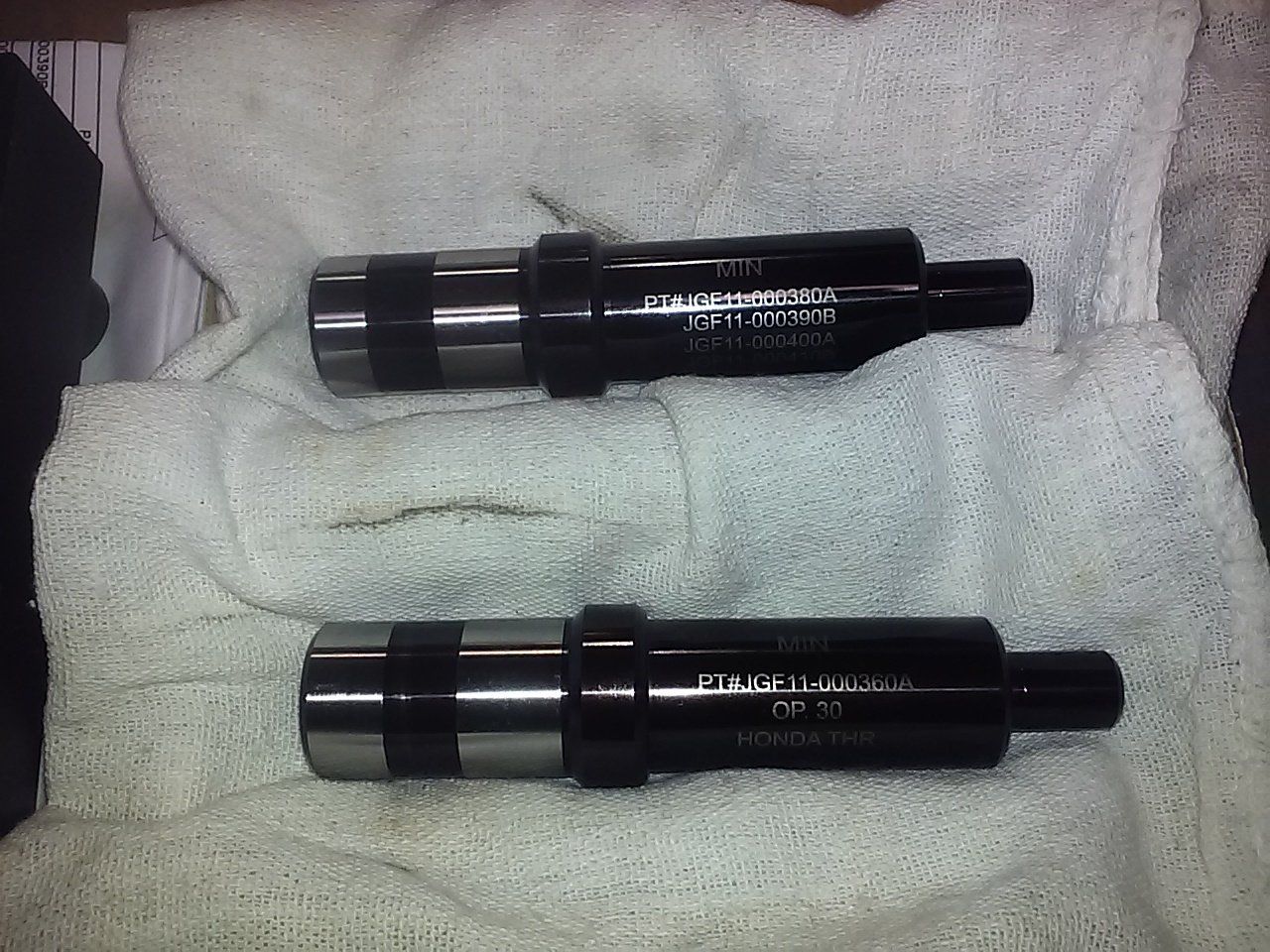

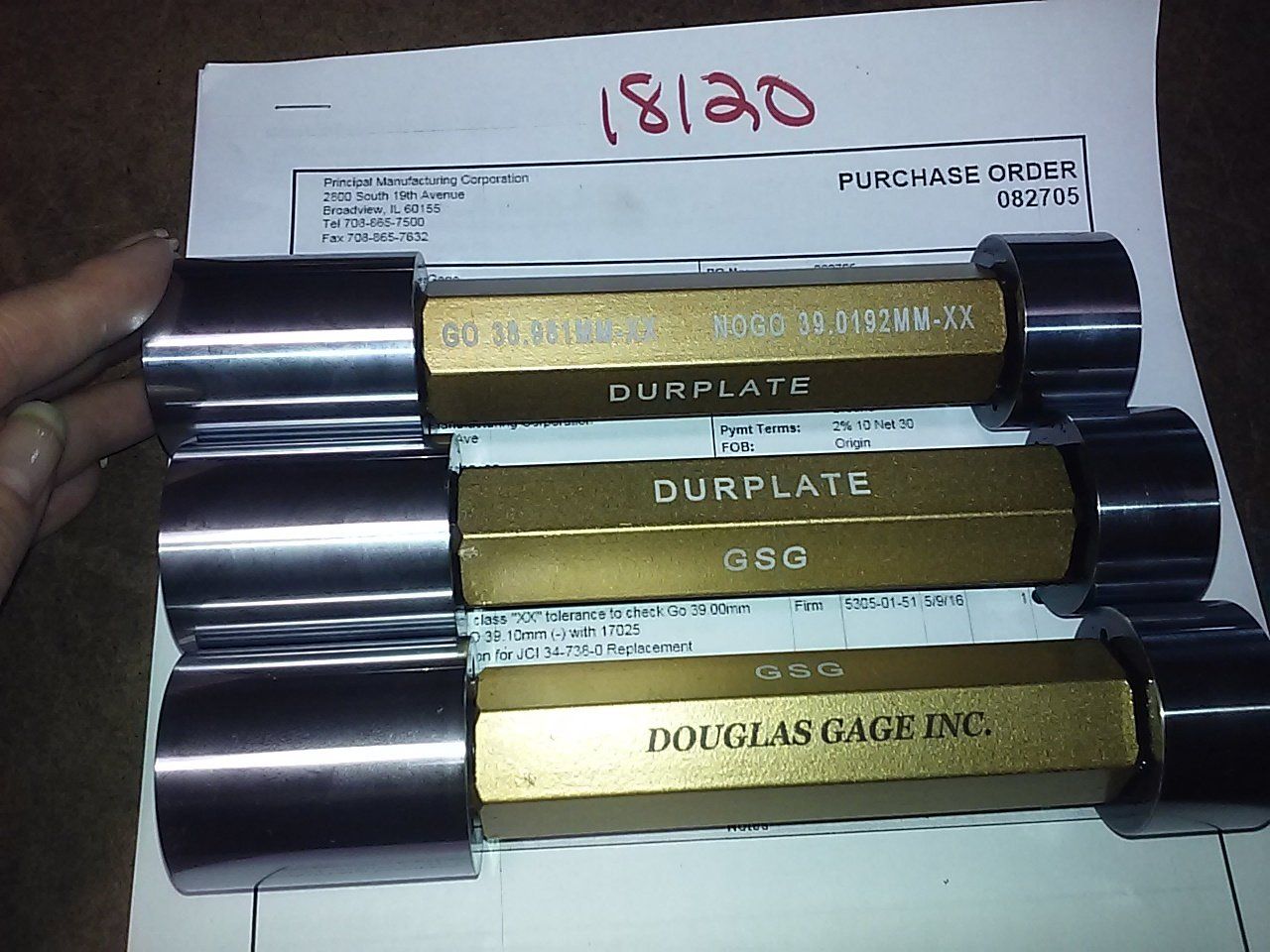

Master plugs are used with air rings and other external diameter measuring instruments as setting standards. Depending on whether single or dual masters are required, single or double-ended aluminum handles are utilized.
Master Discs are used for the same purpose as master plugs, except that these members incorporate plastic grips on each end, rather than aluminum handles.

Manufacture and Certification.
Douglas Gage Inc. setting masters are manufactured on-site in our state-of-the-art, environmentally controlled gage finishing and calibration laboratory. Calibration is done by transfer measurement with standards that are traceable to the National Institute of Standards & Technology (N.I.S.T.).
